OMM3 Series Multi Mounting High Efficiency Motor OMM3-160L0-04P 15kW 400/690V B3/B35/B5/V1

Data Sheet

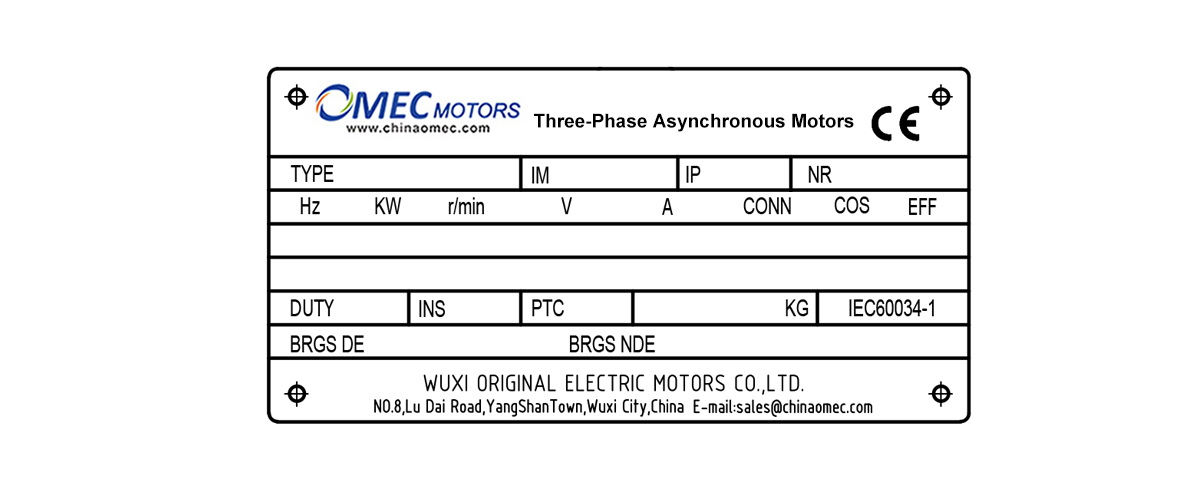

nameplate parameter table

External view of installation method

WUXI ORIGINAL MECHANICAL & ELECTRICAL Co.,Ltd
Data Sheet							No.	OMEC-3889
Three Phase Induction Motor							Drawing No	OMM3-160L0-02~08P B3
Type				OMM3-160L0-04P 15kW 400/690V 50Hz
Identification
Frame			160		mm	Insulation Class		F
Outpu			15		kW	Temperature Rise		80K
Frequency			50		Hz	Service Factor		1.0
Poles			4		P	Duty		S1
Rated Speed			1465		Rpm	Ambient Temperature		-20～40°C
Slip			0.58		%	Altitude		1000m
Rated Voltage			400/690		V	Protection Degree		IP55
Connection			△/Y			Cooling		IC411
Rated Current			27.3/15.8		A	Mounting		IM B3/B35/B5/V1
Rotor Voltage			-			Vibration		1.8 mm/s
Rotor Connection			-			Approx. Weight		140 kg
Rotor Current			-			Moment of Inertia		0.1135 kg-m2
Locked Rotor Current			780		%	Noise Level(Lp)		68
No Load Current			-			Direction of Rotation		BOTH
Rated Torque			97.78		Nm	Starting Method		DIRECT ON LINE
Locked Rotor Torque			220		%	Coupling		DIRECT
Breakdown Touque			230		%	Load Type		-
Performance						Bearing Information
Output		50%		75%	100%			DE	NDE
Efficiency(%)：		89.3		92.3	92.1	Bearing		6309 C3	6309 C3
						Regreasing int(h)		4000	4000
Power Factor		0.73		0.82	0.86	Grease amount(g)		15	15
						Grease-PolyrexEM		Chevron SRI-2	Chevron SRI-2
Standards						Notes / Accessories
Specification	?IEC60034-1?? /? GB/T755					-
Test?	?IEC60034-2?? /?? GB/T1032					-
Noise	?IEC60034-9?? /?? GB/T10069.1					-
Vibration	?IEC60034-14?? /?? GB/T10068
